礼堂(中型)

首页 / 礼堂(中型)

估计容量3,000人
期望声压分布115 dB(Z) 至 39% 之内 +/- 1.5 dB
115 dB(Z) 至 75% 之内 +/- 3.0 dB
115 dB(Z) 至 96% 之内 +/- 4.5 dB
扬声器总数量36 x N-RAY
12 x SCN-F
6 x SCV-F
8 x SCP-F
管理功放总数量2 x T-RACK
2 x M-RACK

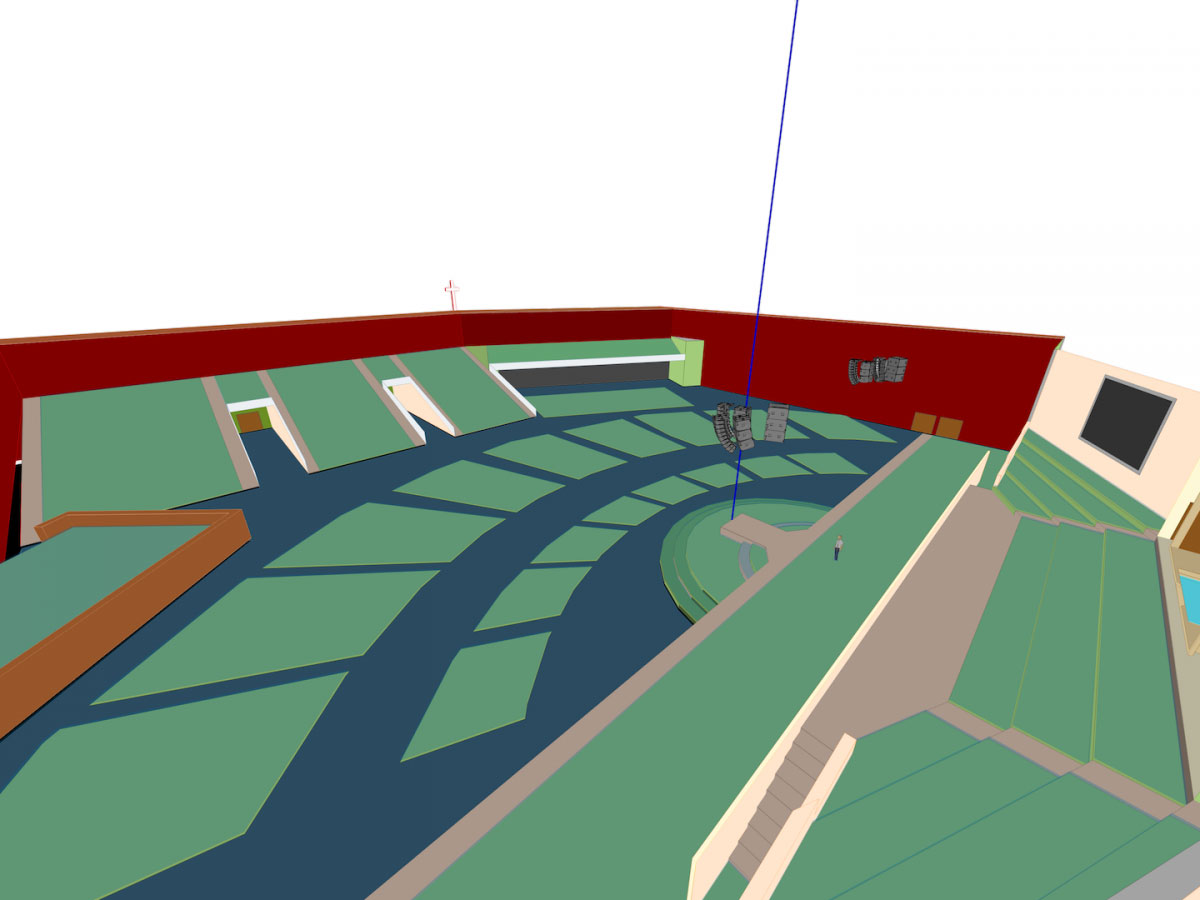

声压图示

声压图形

声压分布

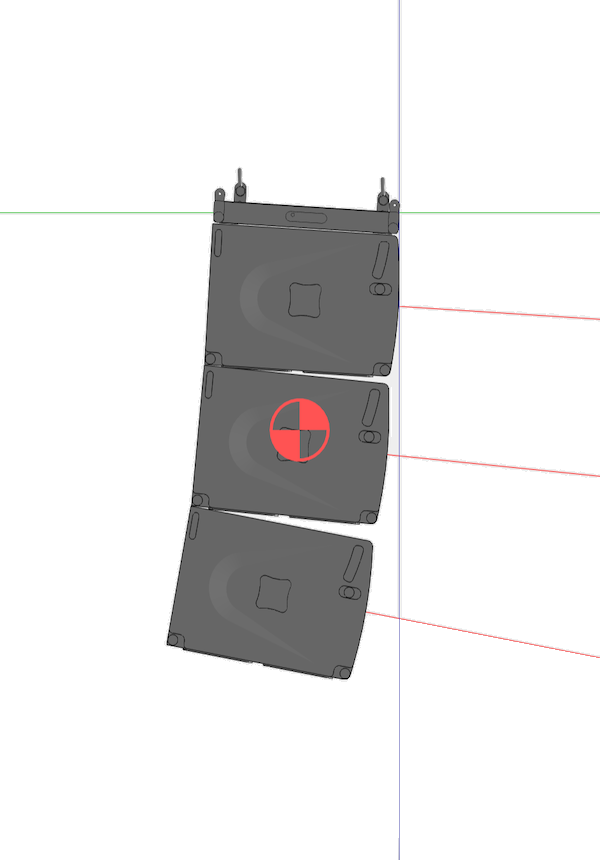

系统要素

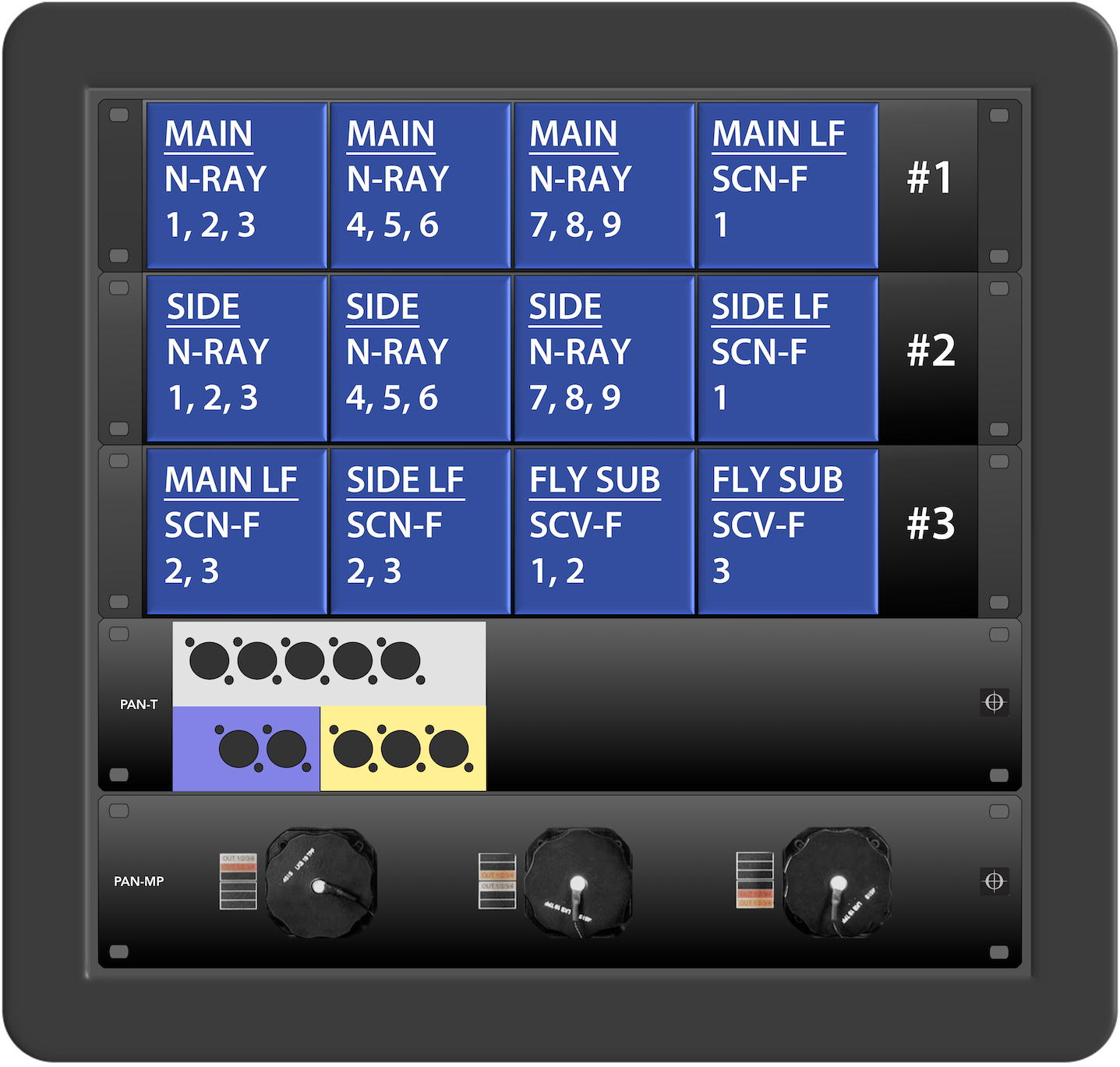

功放配置

Model Reference = Kenny M, 2014. Family Life Worship Center COGIC. 3DWarehouse. [Accessed October 2020].
https://3dwarehouse.sketchup.com/model/78661a1dee16006c6168c765ea37721f/Family-Life-Worship-Center-COGIC

Model used in accordance with Section 1.B.ii of the 3D Warehouse terms of use, accessed October 2020.
